Tuotemerkki
Valmistajan osanumero
AHPI7292S
Takuu
?
24 kuukautta
EAN
4718050307722

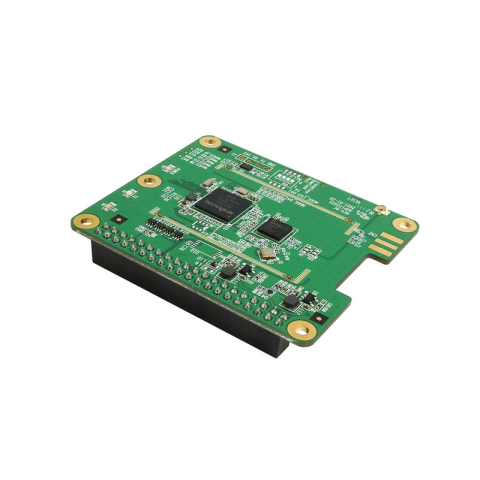

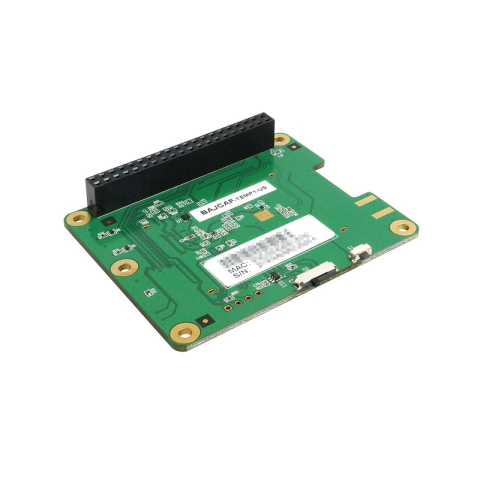

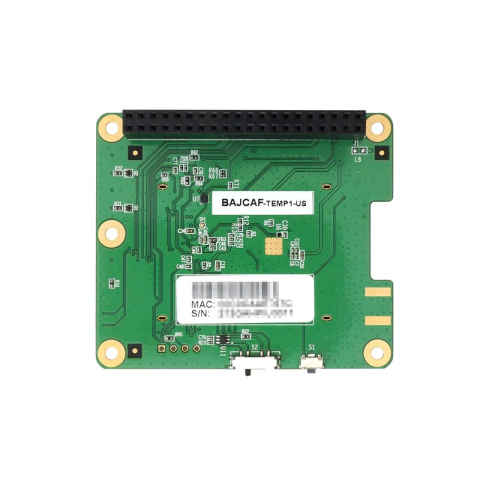

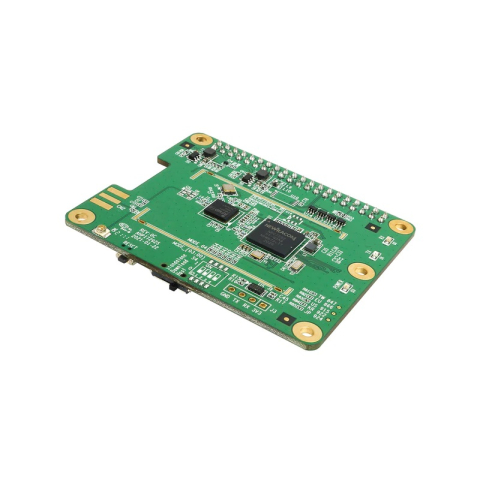

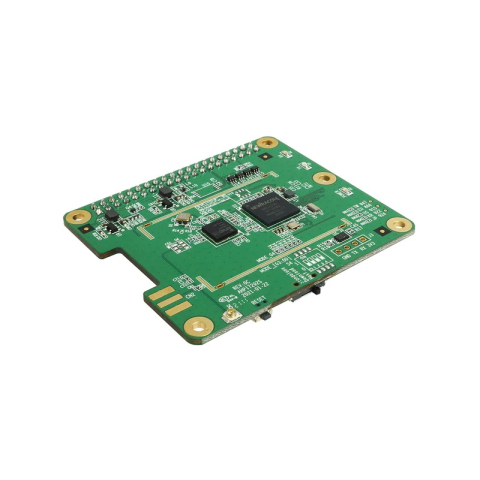

Alfa HaLow Raspberry Pi HAT moduuli
loppu
?
75.76 €
75.76 €
Yksityiskohtainen kuvaus
AHPI7292S on maailman ensimmäinen Wi-Fi HaLow™ Raspberry Pi™ HAT -moduuli
AHPI7292S-moduulisarjalla voidaan rakentaa pitkän kantaman, erittäin vähän virtaa kuluttavia Wi-Fi-verkkoja alle 1 GHz:n lisenssivapailla taajuuksilla hyödyntämällä erittäin suosittua ja avointa alustaa, Raspberry Pi™:tä. Wi-Fi HaLow™ mahdollistaa yhteydet moniin sovelluksiin, kuten antureihin ja puettaviin laitteisiin. Tämä moduuli käyttää 866 MHz:n taajuutta ja täyttää täysin eurooppalaiset sääntelyvaatimukset.
Tuki itsenäiselle ja isäntäpohjaiselle tilalle, jopa 15 Mbps:n datan läpimenonopeus ja täydellinen SDK tekevät tämän uuden Wi-Fi-standardin käytön aloittamisesta helppoa.
Ominaisuudet:
- Newracom™ NRC7292 WiFi HaLow™ SoC (IEEE 802.11ah draft 8.0 -yhteensopiva)
- Taajuus: 866 MHz (EU)
- Qorvo™ RFFM6901 -etupää
- DIP-kytkin tilan valintaa varten ja liitin UART:lle
- Raspberry Pi™ HAT -muotoinen 40-napaisella GPIO-liittimellä
- 3× LED-valoa
Tekniset tiedot
Tekniset tiedot
Langaton Verkko
Standardi
802.11ah
Esiintymistiheys
866 MHz
Liitin
RF-liittimet
(1) U.FL
Järjestelmän Erittely
Piirisarja
Newracom™ NRC7292
Fysikaaliset Parametrit
Mitat
65 × 56 × 10.3 mm
Muoto
Upotettu
Pakkaus Sisältää
Ulkoinen virtalähde
Ei mukana
