Tuotteen nimi
Teltonika DIN-kiskon virtalähde 12V 20W 1.67A
Takuu
?
24 kuukautta
Valmistajan osanumero
PR3PDNP0
EAN
0708747439823

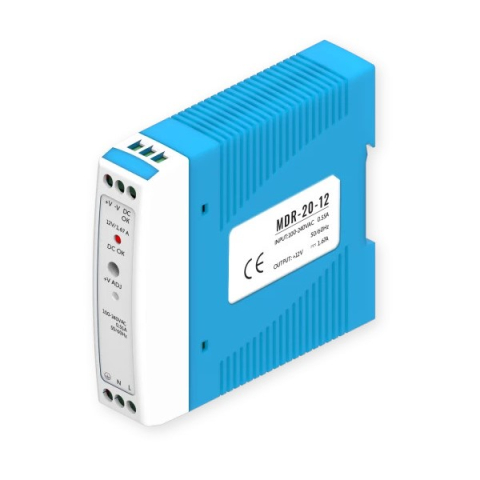

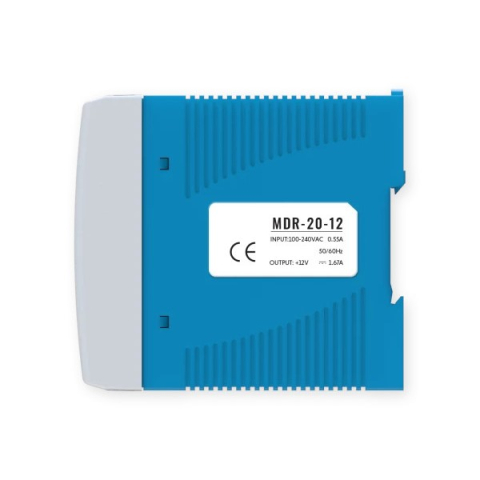

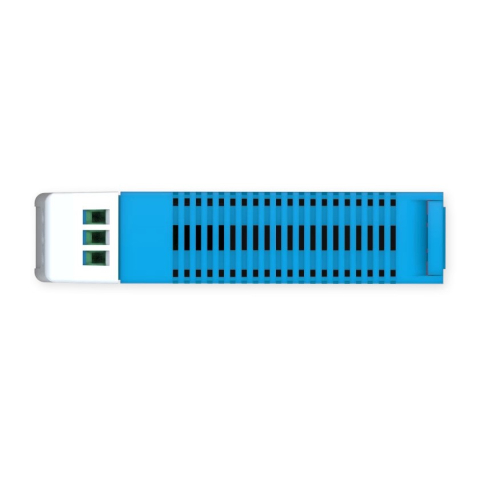

Teltonika MDR-20-12 DIN-kisko virtalähde 12V 20W
Official Teltonika Distributor
Certified Teltonika Engineers
Varastossa
?
25.50 €
25.50 €
Official Teltonika Distributor
Certified Teltonika Engineers
Yksityiskohtainen kuvaus
PR3PDNP0 on DIN-kiskoon asennettava virtalähde Teltonika-reitittimille. Yhteensopivien laitteiden luettelo: RUT200, RUT241, RUT901, RUT951, RUT956, TCR100, RUT300, RUT360, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TRB140, TRB141, TRB142, TRB143, TRB145, TRB245, TRB255, TRB500, TSW010, TSW304.
Ominaisuudet:
- Ylikuormitussuoja: 105 % ~ 160 % katkaisee ulostulon, automaattinen palautus
- Käynnistysvirta: Kylmäkäynnistysvirta 20 A/ 115 VAC; 40 A/ 230 VAC
- Ylijännitesuoja: 120 % ~ 140 % katkaisee lähtöjännitteen, palautumiseen tarvitaan pois/päällä-sykli
- Asetus-, nousu- ja pitoaika: 500 ms; 30 ms/ 230 VAC täydellä kuormalla; 1000 ms; 30 ms/ 115 VAC täydellä kuormalla
- Kestojännite: I/P-O/P: 1,5 kV; I/P-FG: 1,5 kV; O/P-FG: 0,5 kV 1 minuutti
- Eristysvastus: I/P-O/P I/P-FG O/P-FG: 500 VDC/ 1000 MΩ
