Tuotteen nimi

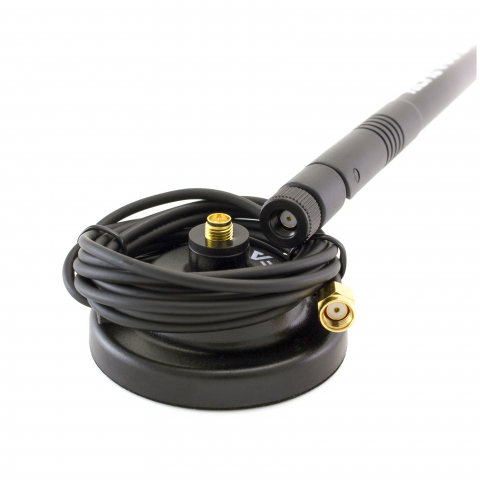

Alfa 2.4GHz Dipoliantenni 9dBi Magneetti Base RP-SMA Male
Takuu
?
24 kuukautta
Valmistajan osanumero
ARS-N19M
EAN
4718050300204
Alfa 2.4GHz Dipoliantenni 9dBi Magneetti Base RP-SMA Male
Varastossa
?
13.93 €
13.93 €
Yksityiskohtainen kuvaus
Yhteensopivat tuotteet
Tekniset tiedot
Antenni
Antennin Suunnittelu
Omni
Langattoman Antennin Taajuusalue Ja Vahvistus
2.4 - 2.5 (GHz) 9 (dBi)

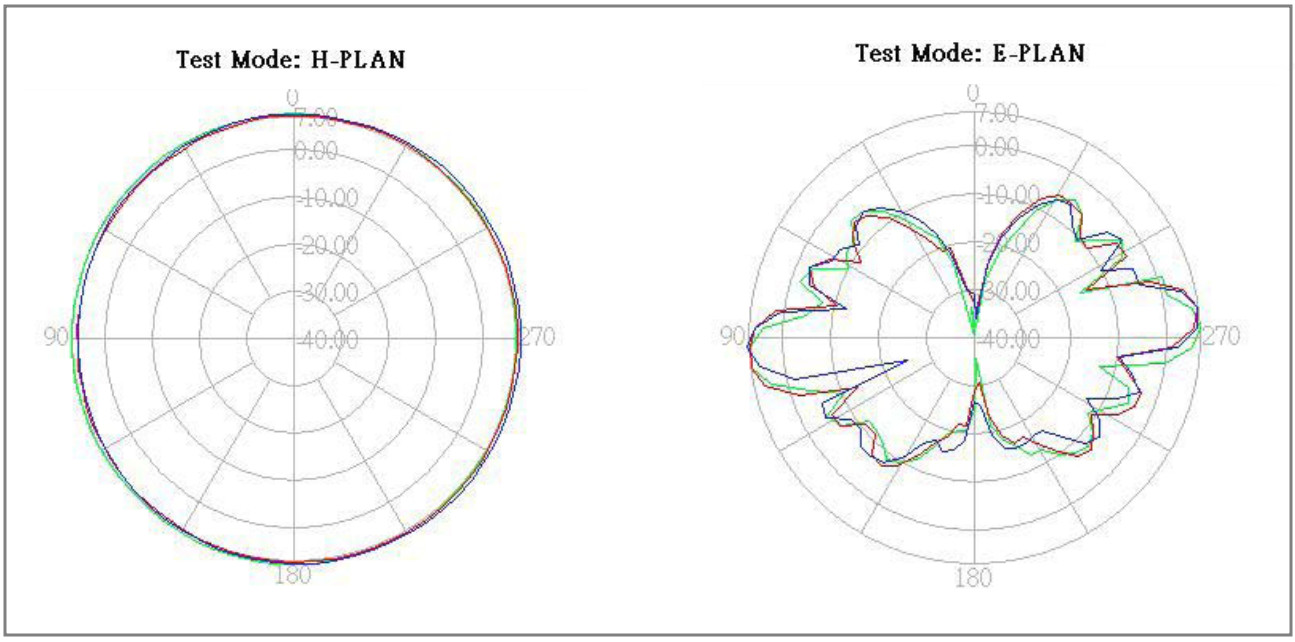

Säteen leveys
360 ° Pystysuora
Polarisaatio
Lineaarinen
Kaapelin Pituus
1.5 m
VSWR
< 1.5
Impedanssi
50 Ω
Liitin
RF-liittimet
(1) RP-SMA Male
Fysikaaliset Parametrit
Mitat
Ø13 x 392 mm
Käyttölämpötila
-10 °C - 55 °C
Ympäristö
Sisä
Kiinnitysmenetelmä
