Tuotemerkki
Valmistajan osanumero
AOA-868-5ACM
Takuu
?
24 kuukautta
EAN
4718050307517

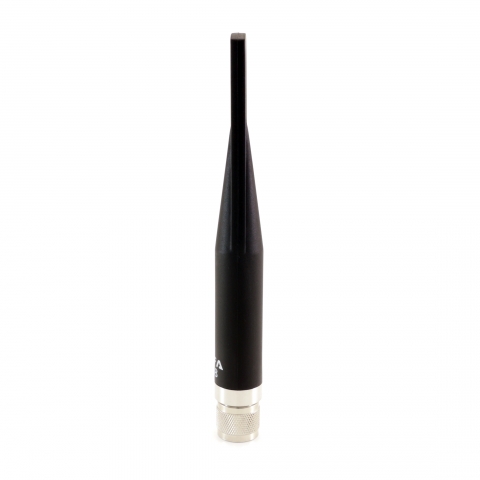

Alfa LoRa/HaLow 868MHz Antenni 5dBi N-Male
varastossa
?
10.84 €
10.84 €
Yksityiskohtainen kuvaus
Tekniset tiedot
Yhteensopivat tuotteet
Tekniset tiedot
Langaton Verkko
Standardi
802.11ah
Antenni
Antennin Suunnittelu
Omni
Langattoman Antennin Taajuusalue Ja Vahvistus
0.863 - 0.870 (GHz) 5 (dBi)
Säteen leveys
360 °
VSWR
< 2.0
Impedanssi
50 Ω
Liitin
RF-liittimet

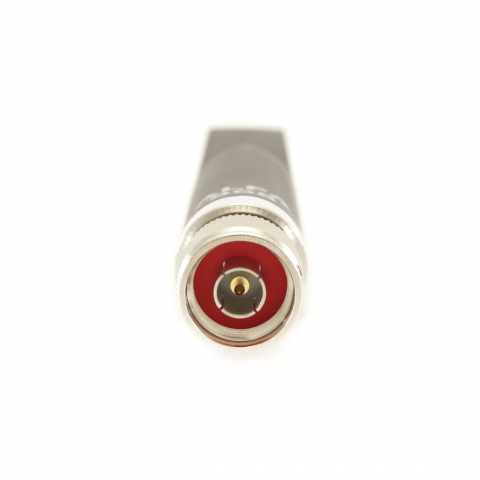

(1) N Male
Fysikaaliset Parametrit

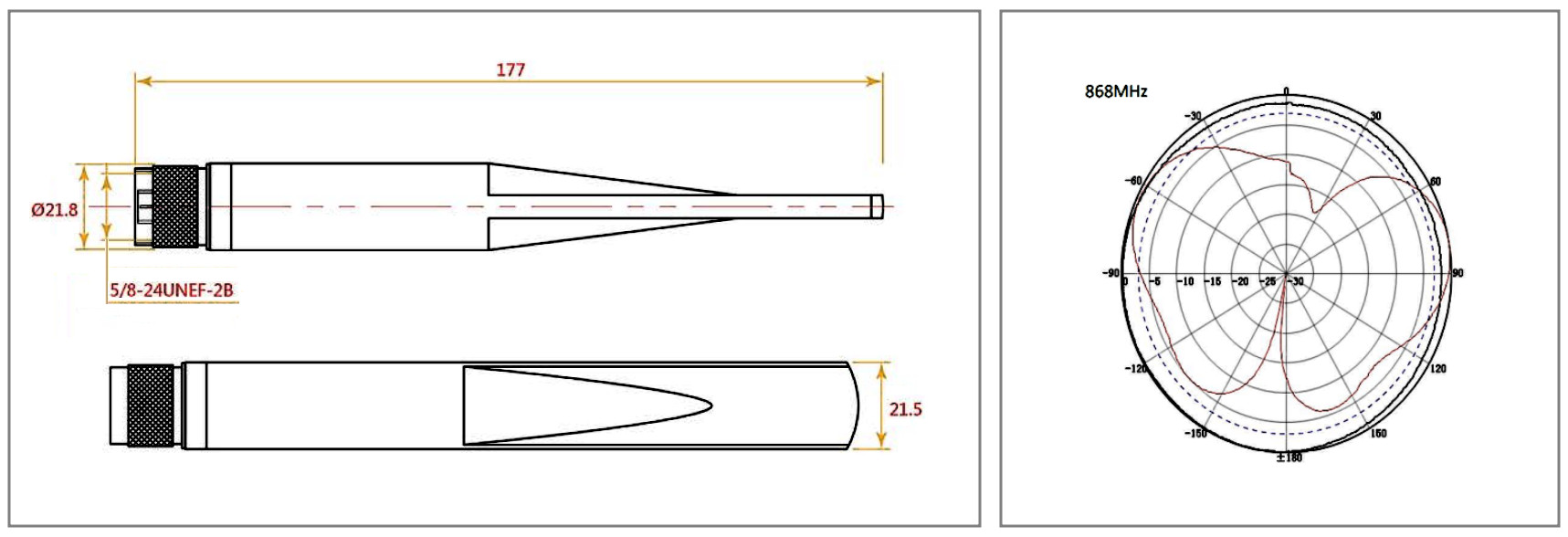

Mitat
Ø22 x 180 mm
Paino
0.082 kg
Käyttölämpötila
-40 °C - 85 °C
Ostetaan usein yhdessä
Toimitus
Maailmanlaajuinen toimitus.
1-2 päivän pikatoimitus.
Edullinen toimitus kuriirin tai postin kautta.
Tilaukset lähetetään 24 tunnin kuluessa arkipäivinä.
Maksutavat
Nopeat ja turvalliset maksut kortilla.
Tilisiirrot euroissa tai valuutoilla USD ja GBP.
Erikoistarjouksia tukkumyyntiin.
Takuu ja palautukset
30 päivän palautusoikeus.
Online RMA-tila takuulle, vaihdoille ja korjauksille.
Saatavilla laajennettu takuu.
Arvostelut ja arviot
