Tuotteen nimi
4G MIMO 4x4 Mobiiliantenni 3.5dBi IP67, SMA Male
Takuu
?
24 kuukautta
Valmistajan osanumero
JCG605LM4
EAN
0708747435795
4G MIMO 4x4 Mobiiliantenni 3.5dBi IP67, SMA Male
Varastossa
?
45.32 €
45.32 €
Yksityiskohtainen kuvaus
Yhteensopivat tuotteet
Tekniset tiedot
Matkapuhelinverkko
Matkaviestinverkon luominen
Antenni
Antennin Suunnittelu
Katto
Matkapuhelinantennin Taajuusalue Ja Vahvistus
0.698 - 0.960 (GHz) 3.5 (dBi), 1.710 - 2.690 (GHz) 3.5 (dBi)
Matkapuhelinantennin Vahvistus
3.5 dBi
Polarisaatio
Lineaarinen
Kaapelin Pituus
3 m
VSWR
< 3
Impedanssi
50 Ω
Liitin
RF-liittimet

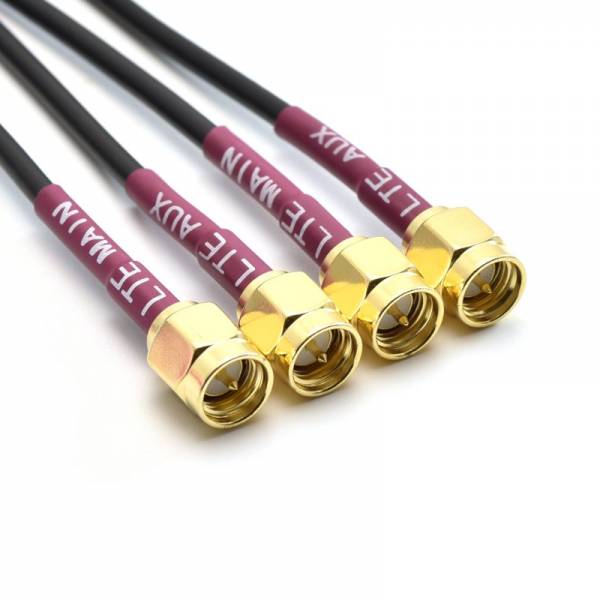

(4) SMA Male
Fysikaaliset Parametrit
Väri
Musta
Materiaali
ABS-muovi
Suojausluokka
IP67

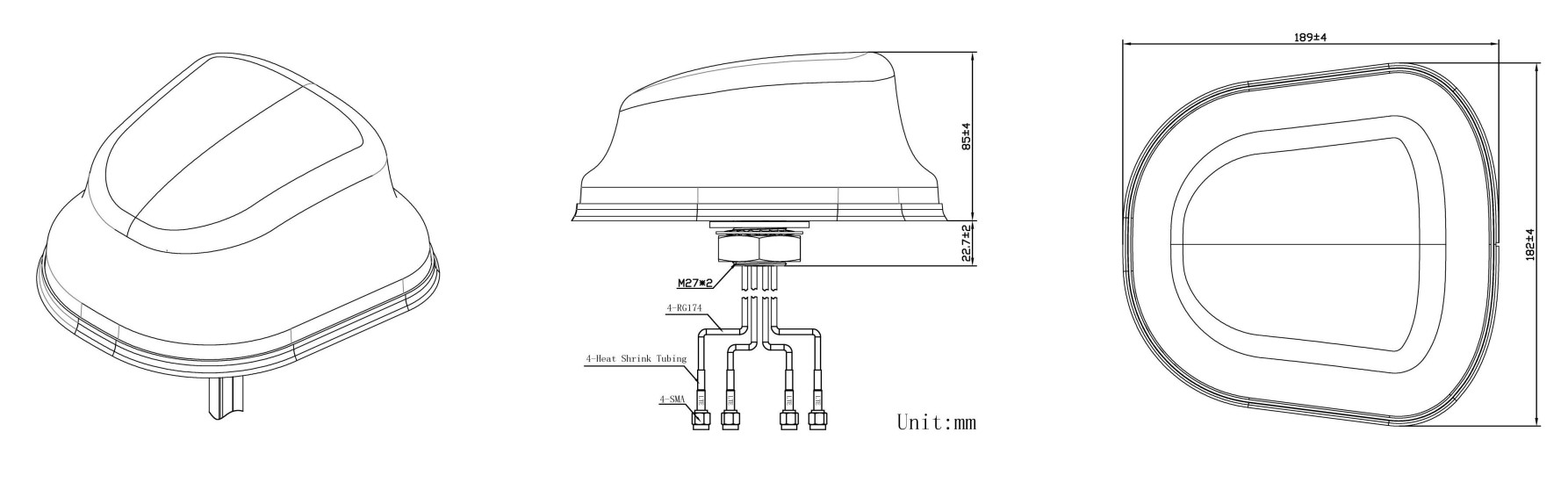

Mitat
185 x 180 x 90 mm
Käyttölämpötila
-40 °C - 85 °C
Ympäristö
Ulkotiloissa
Kiinnitysmenetelmä
