Tuotteen nimi
4G LTE ulkoantenni 8dBi IP67 N-Male
Takuu
?
24 kuukautta
Valmistajan osanumero
AOA-4G-8M
EAN
4718050305544

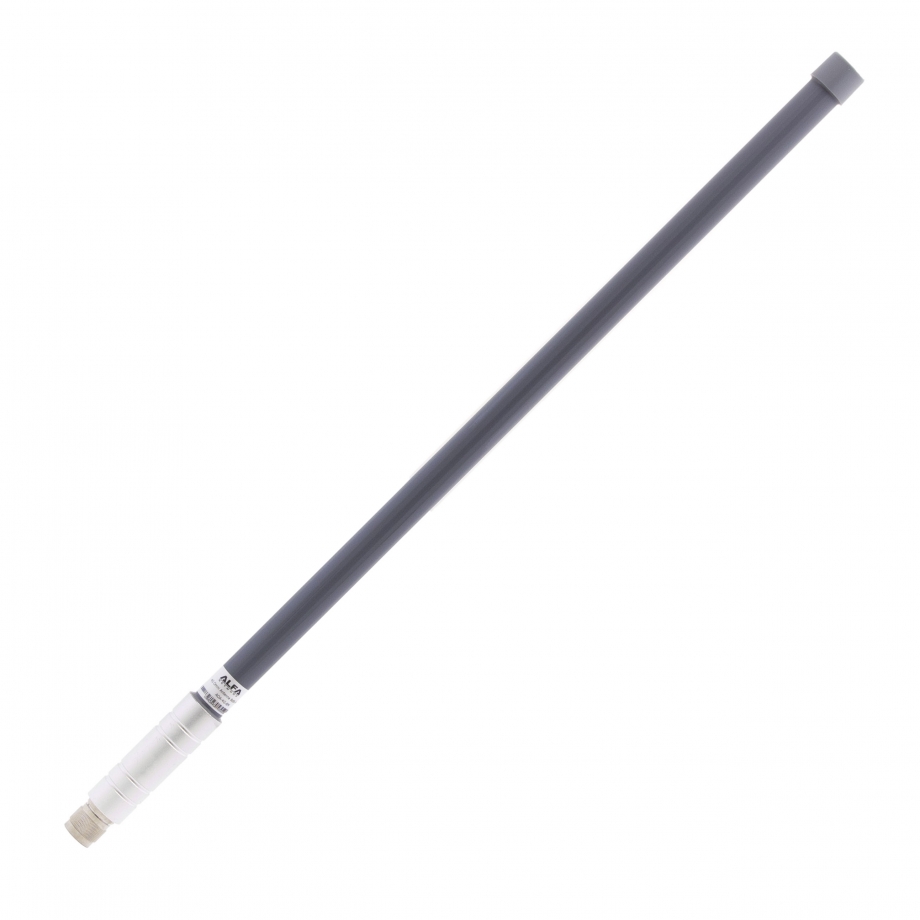

ALFA Network 4G LTE ulkoantenni 8 dBi IP67 N-urosliittimellä
- Suunaton 4G/LTE-ulkoantenni parantaa mobiiliverkon kuuluvuutta; IP67-suojaus auttaa kestämään pölyä ja vettä.
- Kaksoistaajuus: 698–960 MHz 6 dBi vahvistuksella ja 1710–2700 MHz 8 dBi vahvistuksella luotettavaan LTE-suorituskykyyn yleisillä taajuuksilla.
- SISO 1x1 -rakenne tukee vakaata yhden virran yhteyttä, joten se sopii hyvin ulkoasennuksiin, joissa 4G-yhteyden tasaisuus on tärkeää.

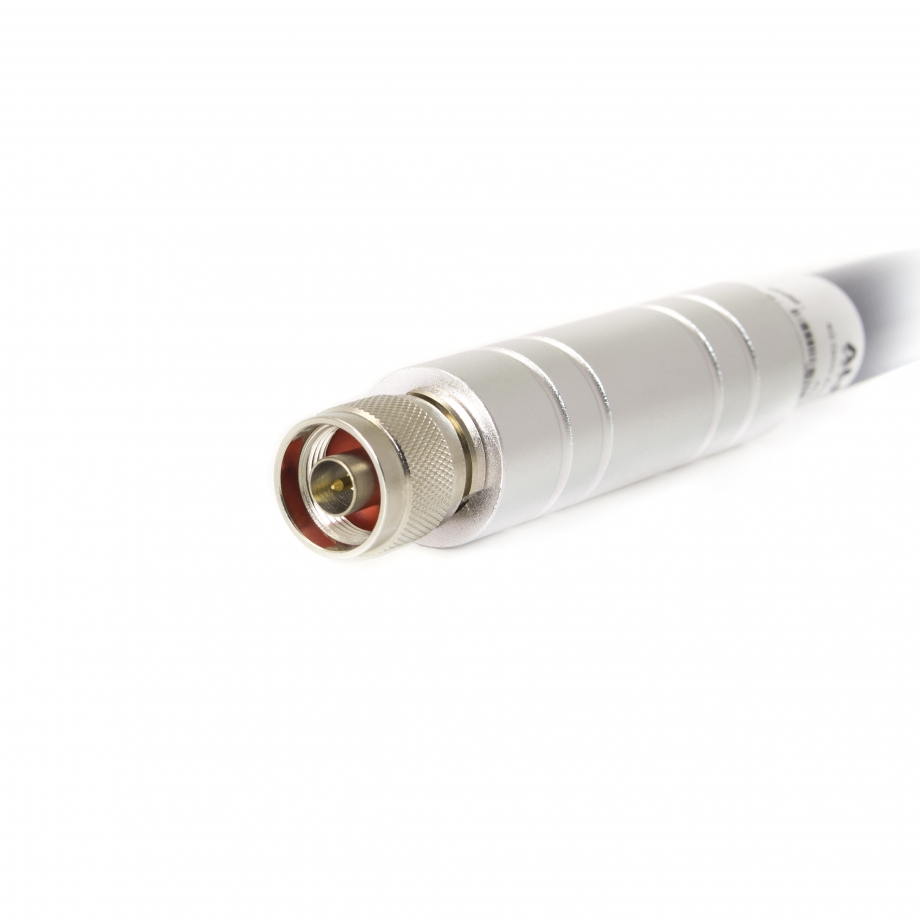

- N Male -liitin tarjoaa varman ja yleisen liitännän yhteensopiville LTE-laitteille ja ulkoverkon asennuksiin.
- ALFA Network AOA-4G-8M on suunniteltu ulkokäyttöön – käytännöllinen ratkaisu koteihin, mökeille ja syrjäisiin kohteisiin paremman 4G-peiton tarpeeseen.
38.43 €
Varastossa
?
38.43 €
Varastossa
?
Yhteensopivat tuotteet
Tekniset tiedot
Matkapuhelinverkko
Matkaviestinverkon luominen
Antenni
Antennin Suunnittelu
Omni
Matkapuhelinantennin Taajuusalue Ja Vahvistus
0.698 - 0.960 (GHz) 6 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Matkapuhelinantennin Vahvistus
6 dBi, 8 dBi

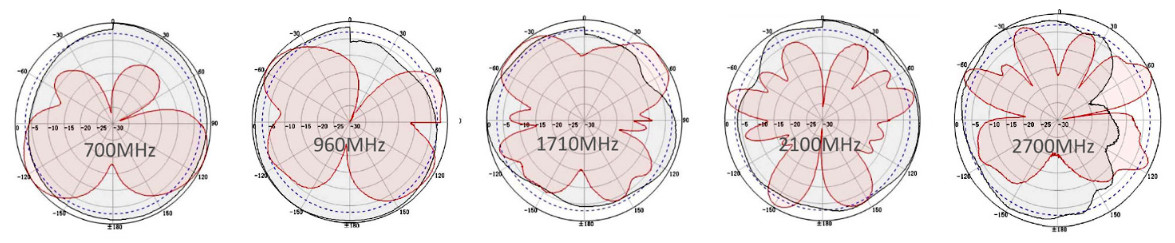

Säteen leveys
16 ° Pystysuora, 360 ° Vaaka
Polarisaatio
Pystysuora
VSWR
< 1.5
Impedanssi
50 Ω
Suurin Ottoteho
100 W
Liitin
RF-liittimet
(1) N Male
Fysikaaliset Parametrit
Väri
Harmaa
Materiaali
Lasikuitu
Suojausluokka
IP67
Mitat
Ø20 x 600 mm
Paino
0.65 kg
Käyttölämpötila
-40 °C - 70 °C
Ympäristö
Ulkotiloissa

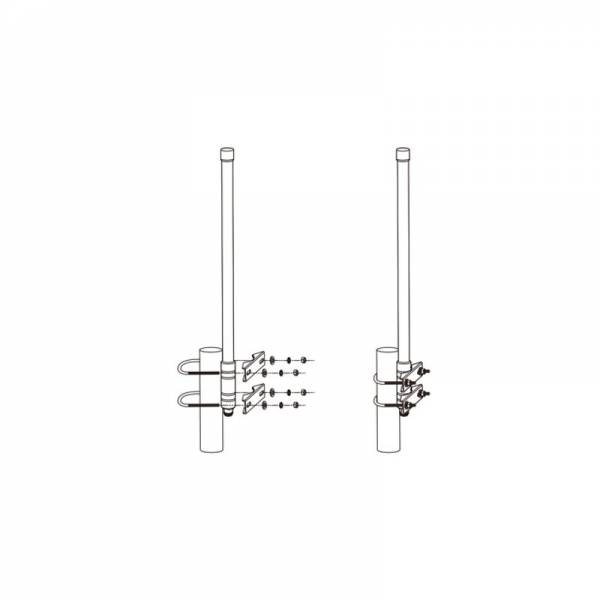

Kiinnitysmenetelmä
Nimellinen Tuulen nopeus
60 m/s
