Tuotteen nimi
Array Sektoriantenni 100°, 2x RP-SMA
Takuu
?
24 kuukautta
Valmistajan osanumero
AS-5-20
EAN
8588006459616

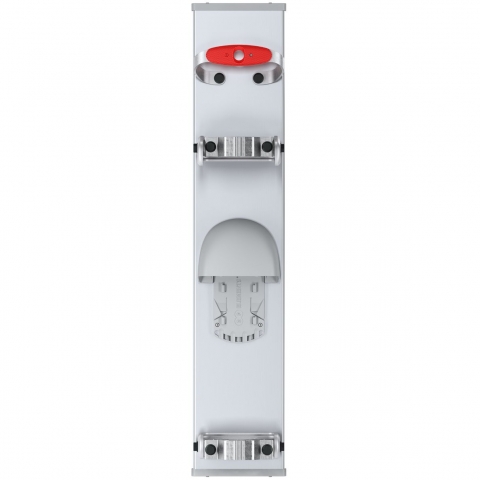

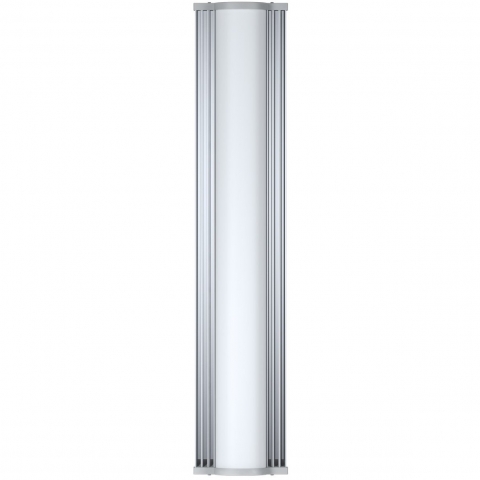

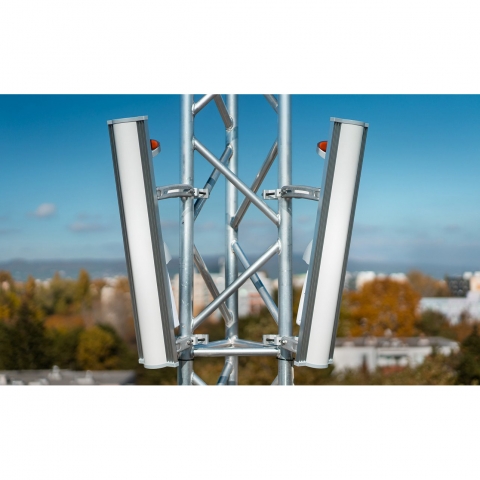

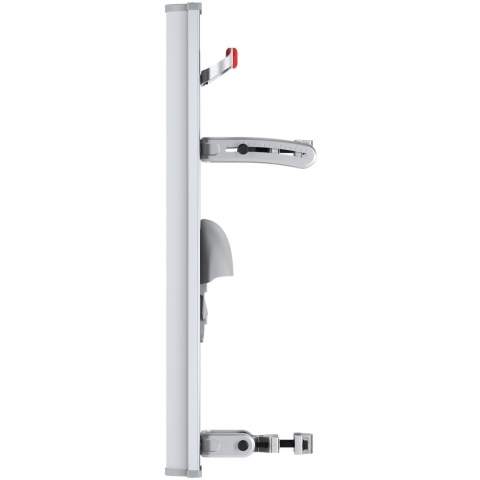

Array-sektorantenni 100° 2x RP-SMA | 5150–5850 MHz sektoripaneeliantenni BackShield™-suojauksella
- 100° sektoripatch-array-antenni vakaalla vahvistuksella 5150-5850 MHz alueella luotettaviin point-to-multipoint- ja tiheisiin klusteriverkkoihin.
- BackShield™ vähentää sivulohkoja ja takasäteilyä, mikä parantaa co-location-suorituskykyä ahtaissa langattomissa asennuksissa.
- 2 RP-SMA-liitintä ja irrotettava suojus suojaavat SMA-portteja siistiin ja turvalliseen radiointegraatioon.
- Laaja yhteensopivuus tärkeimpien koaksiaaliliittimillä varustettujen radioiden kanssa; katso täydellinen lista datasheetistä.
- Kestävä ekstruudoitu alumiinirunko, UV-suojatut muovit ja ruostumattomasta teräksestä valmistetut osat kestävät säätä.
212.53 €
loppu
?
212.53 €
loppu
?
Saatavilla olevat vaihtoehdot
Yksityiskohtainen kuvaus
Tekniset tiedot
Yhteensopivat tuotteet
Tekniset tiedot
Antenni
Antennin Suunnittelu
Sektori
Langattoman Antennin Taajuusalue Ja Vahvistus
5.15 - 5.85 (GHz) 20 (dBi)
Säteen leveys
100 ° Pystysuora, 100 ° Vaaka
Polarisaatio
Dual Lineaarinen
VSWR
< 1.7
Impedanssi
50 Ω
F/B-suhde
> 30 dB
Liitin
RF-liittimet
(2) RP-SMA Female
Fysikaaliset Parametrit
Materiaali
Ruostumaton teräs, Alumiini, ABS-muovi
Suojausluokka
IP55
Mitat
804 x 257 x 160 mm
Paino
3.5 kg
Käyttölämpötila
-35 °C - 55 °C
Ympäristö
Ulkotiloissa
Kiinnitysmenetelmä
Nimellinen Tuulen nopeus
160 km/h
